Heidenhain HR 510 Handwheel // ID 1119971-01

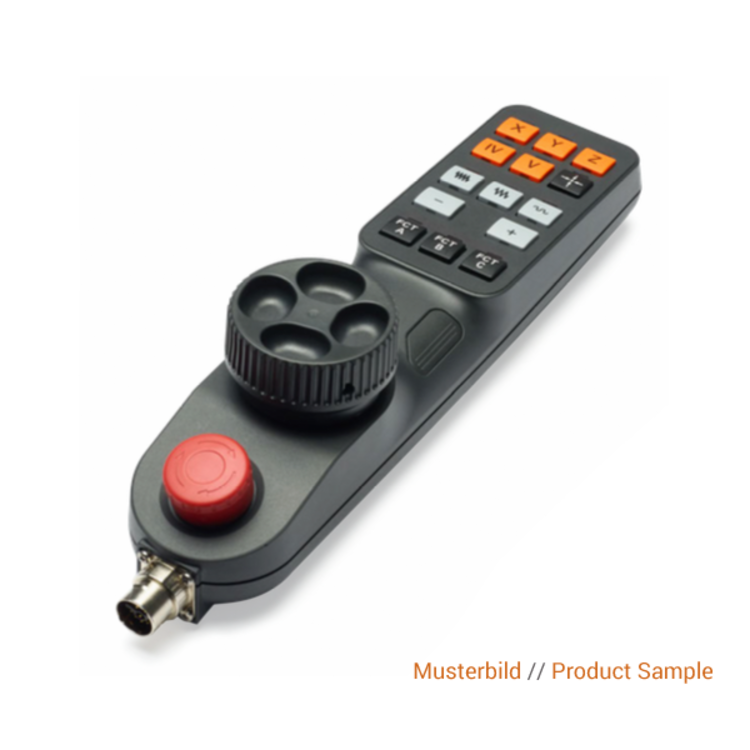

Heidenhain HR 510

Portable Electronic Handwheel without detent

• Two two permissive buttons (24V)
• Emergency stop button
• Two holding magnets
• Exchangeable key symbols
• Fixed-function Keys for axis movement

The exchangeable key symbols come preconfigured with:

• Keys for axis selection (X, Y, Z, IV, V)
• Keys for actual-position capture
• Keys for three preset feed rates
• Keys for Spindle start, NC start, NC stop

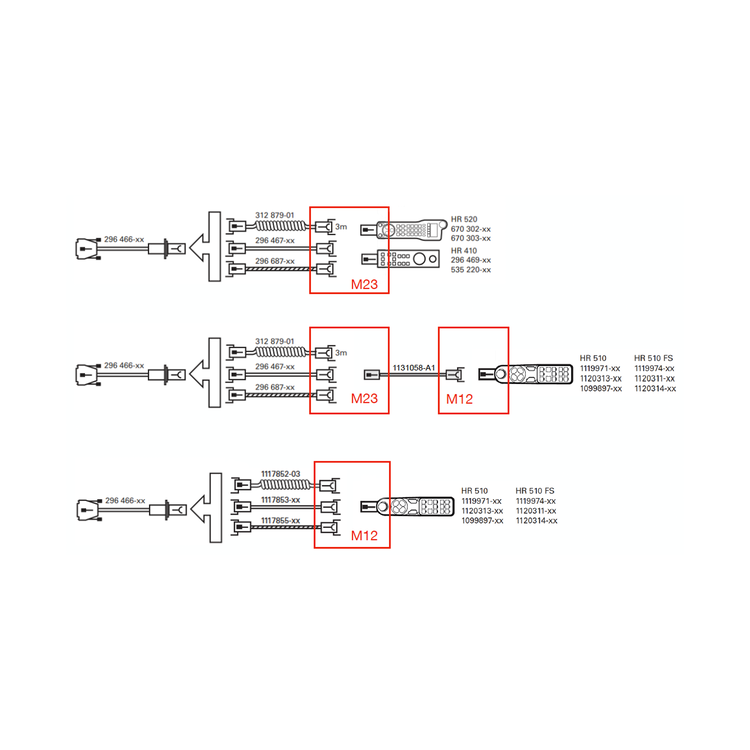

A connecting cable is not included in the scope of delivery.

Please compare the Heidenhain ID with the one on your device. If the ID differs, contact us so we can provide the correct replacement device.

Returns are only possible if the manufacturer's seal remains unopened.
